4duino Placa de expansión de sensores V4

4duino Placa de expansión de sensores V4
€ 5,76 *

Los precios incluyen IVA, pero no los gastos de envío

Disponibilidad inmediata, Plazo de entrega aprox. 1-3 días laborables

  • 111991
4duino sensor extended edition V4 Description Each functional...más
Información del producto "4duino Placa de expansión de sensores V4"

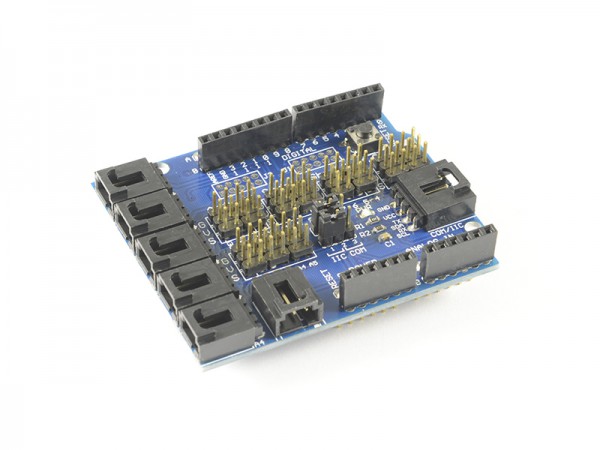

4duino sensor extended edition V4

Description

Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

Sensor Shield V4.0 allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers.just plug & play! Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.
  • Operating Voltage: 5VDC
  • Input Voltage (recommended): 7-12VDC
  • Input Voltage (limits):  6-20VDC
  • Buckled Analog Port:Handy, solid connection to 6 Analog inputs with VCC/GND
  • Digital IO port:13 ports prepared to digital modules or servos
  • Analog IO Port:2.54 grid male pin header connections
  • Buckled Communication Port:Selectable between I2C and UART
  • Compatible with: Arduino Duemilanove UNO Mega2560 ATMEL

Specification: just plug & play Operating Voltage: 5VDC Input Voltage (recommended): 7-12VDC Input Voltage (limits): 6-20VDC Buckled Analog Port : solid connection to 6 Analog inputs with VCC/GND. Digital IO port : 13 ports prepared to digital modules or servos. Analog IO Port:2.54 grid male pin header connections. Buckled Communication Port : Selectable between I2C and UARt. Size:7cm x 5.8cm (2.76inch x 2.28inch)
